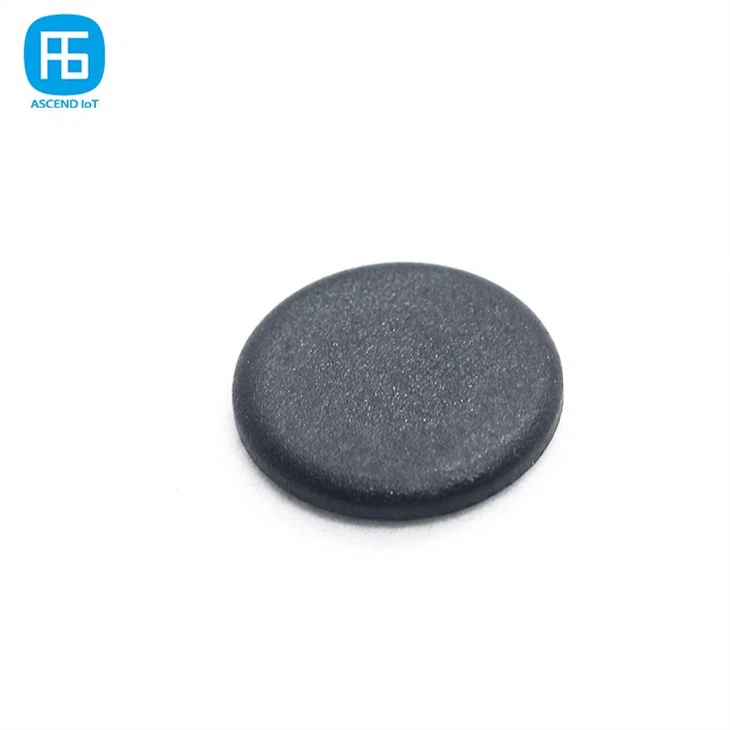

NFC Washable Tag

PPS me me thiab epoxy ua NFC ntxhua khaub ncaws tag, txoj kab uas hla ntawm nws tsuas yog 14 hli, N Tag 213 nti tsim sab hauv, PPS thiab epoxy tuaj yeem tiv thaiv NFC nti los ntawm kub thiab tshuaj lom neeg, lub tshuab ntxhua khaub ncaws me me NFC tag tuaj yeem xaws. mus rau hauv cov ntaub ntawv tseem ceeb los yog lub hnab rau kev txheeb xyuas thiab tiv thaiv cuav.

Xa kev nug

Nqe lus piav qhia:

RFID Specifications
Qauv		ASPPSR 14
RFID Txuj		ISO/IEC14443 A, NFC Rooj Sib Tham 2
Txoj kab uas hla		14mm ib
Thickness		1.7mm ib
Qhov hnyav		0.5 g
Khoom siv		PPS thiab Epoxy
Chip		Tag Nr 213
EEPROM		144 ib
Nyeem ntau		1-5cm
Tagging		Sewing, Ntxig
Kwv yees lub neej		200 lub voj voog ntxhua lossis 3 xyoos, qhov twg los ua ntej
Daim ntawv thov		Linen taug qab Kho kom zoo nkauj tswj Hom kev tshaj tawm Kev tswj khw muag khoom Kev kho mob kev lag luam kev tswj hwm Rental linen tswj Textile txheeb xyuas / traceability
Environmental Resistance
Txoj Kev Ntxuav				Khaub ncaws, Qhuav tu
Dej Extraction Siab				60 bar
Dej tsis kam				Dej tsis kam
Tshuaj tiv thaiv				Detergent, Softener, Bleach (Oxygen / Chlorine), Alkali
Thaum tshav kub kub Sterilization				125 ºC rau 15-20 feeb
Thaum tshav kub kub Resistance	Qhuav			90 degree (Txog 15min.) 160 degree (Txog 30 Sec.)
	Ironing			200 degree (txog 10 sec. nrog xovxwm ntaub)
Humidity / Kub
Kev khiav haujlwm				-20 rau 80 degree , 10 mus rau 95 feem pua RH
Cia		-40 mus rau 85 degree , 8 mus rau 95 feem pua RH
Customization thiab Packing
Kev kho kom haum			URL programmable
Ntim Cov Lus Qhia			500pcs / hnab
